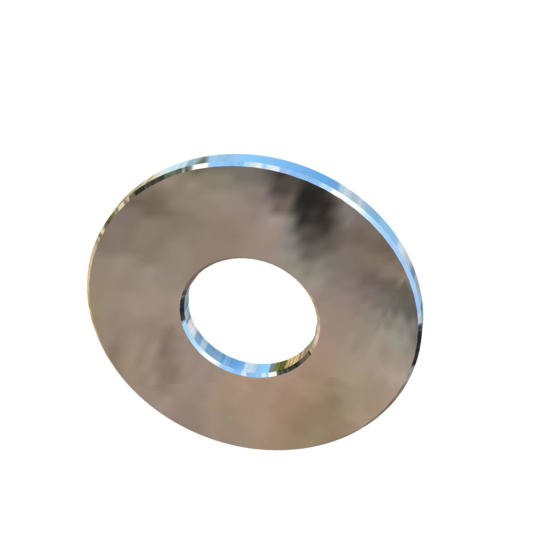

    Item # 0054414: M1.7 Allied Titanium Flat Washer X 0.3mm Thick X 4.5mm Outside Diameter, Grade 5 (Ti-6Al-4V) Titanium with Polished Finish
Titanium M1.7 Allied Titanium Flat Washer X 0.3mm Thick X 4.5mm Outside Diameter
  These flat washers are TRUE TITANIUM(TM), specifically Grade 5 (Ti-6Al-4V). Grade 5 titanium is a common aerospace alloy that has been used in commercial aircraft for decades and it has only been recently that Grade 5 titanium has become affordable to the average person.

Flat washers are designed to spread the pressure of a bolt or screw under the head. If the washer starts corroding, then the washer fails and the head of the fastener starts to dip into whatever is under it. You have probably seen this. A bigger problem occurs when washer actually cracks due to corrosion and then comes completely loose.

Our titanium flat washers are corrosion free, so the problems mentioned above go away with Grade 5 titanium, even in saltwater.

Another benefit with Grade 5 titanium flat washers is their strength and springiness. This spreads the pressure of the fastener's clamping force evenly around the head. With a minimum yield strength of 128,000 psi (880 Mpa), they are designed for structural applications in race cars, sailboats, powerboats, engines, bicycles, etc. If you are looking for high strength, or lightweight, or zero rust, these Grade 5 titanium flat washers will work perfectly.

TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc.
Price: Call (302) 249-3295
Unit: Each
Min. Order Qty: 500
1st Qty Break: 2500
1st Break Price: Call (302) 249-3295
2nd Qty Break: 10000
2nd Break Price: Call (302) 249-3295
  Please call (800) 725-8143 or (302) 249-3295 if you need help.
Ship Kg: 0.0000
Measure: Metric
Inside Diameter: 1.7
Thickness: 0.3
Outside Diameter: 4.5
Group: Fasteners
Category: Fastener, Washer
Sub Category: Flat, Normal
Class: Standard
Tolerance: +0/-0.30 mm
UPD # Ti5FWFNMST1.7X0.3X4.5P
Index: Washer, Flat
Meets DIN: 125
